Textured Diffusers for Beam Angle Management

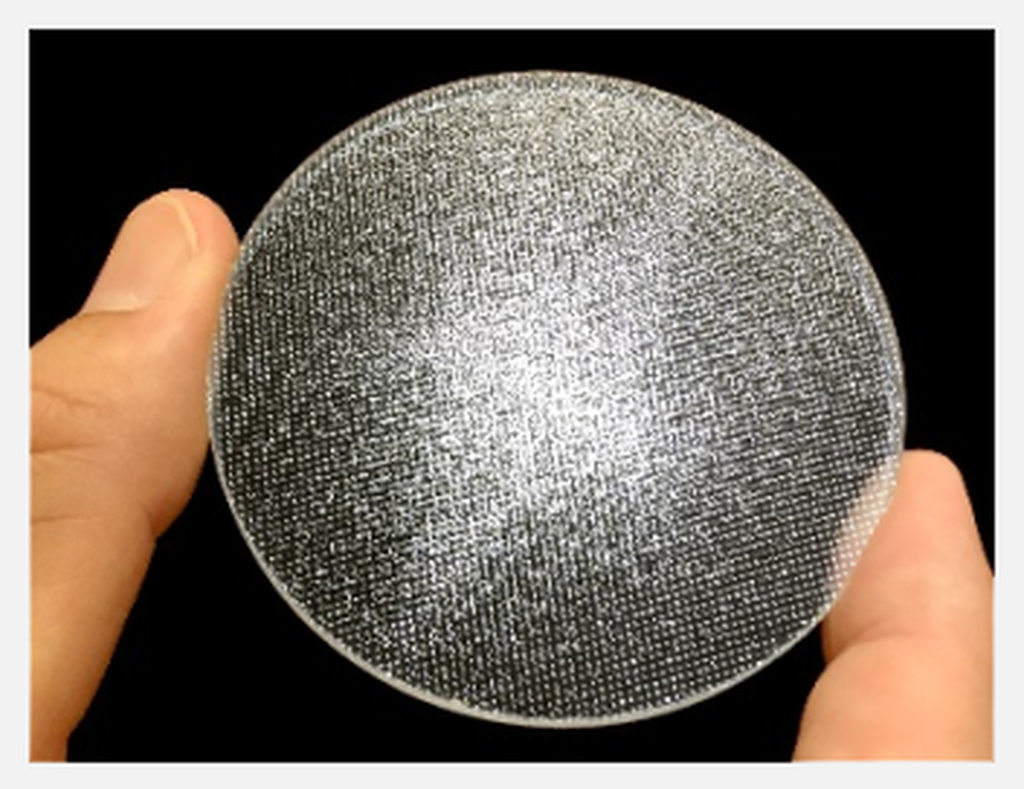

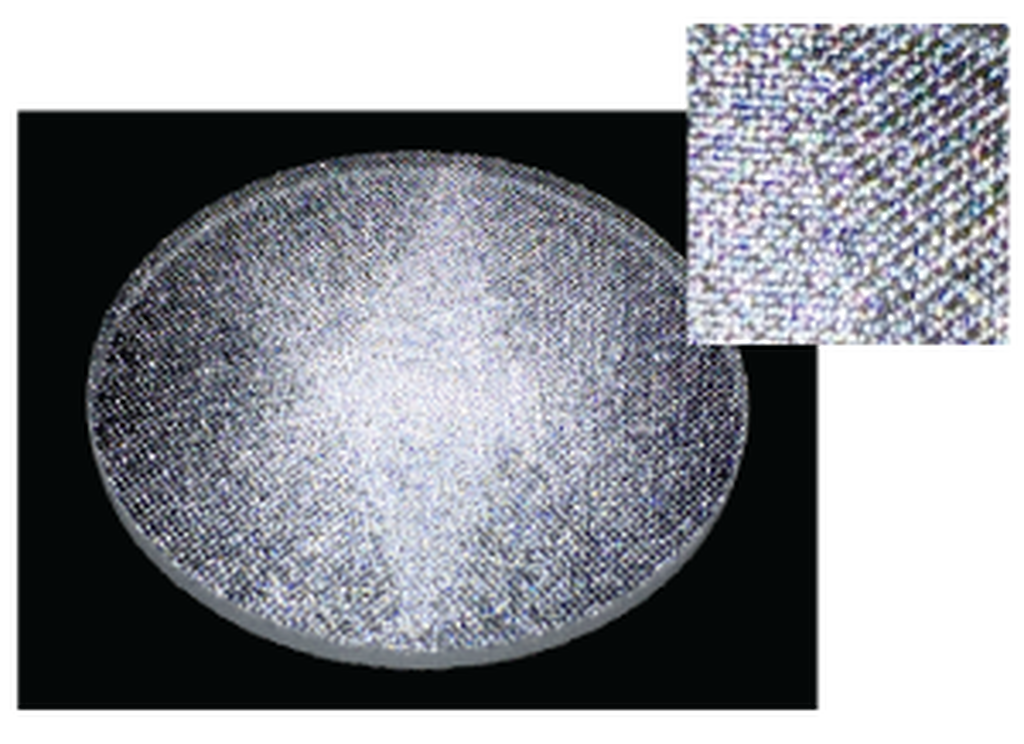

S-Series lenses can replace textured diffusers such as Solite™ and Industrex™ glass lenses, retaining their iconic textured appearance in a convenient and cost-effective plastic diffuser. They are typically used to soften or diffuse downlights, spot lights, and flood lights that require light to moderate diffusion. S-Series are available in a wide range of thicknesses and materials per the table below.
Also see M-Series (non-textured) Beam Mixing Diffusers from BrightView.
| Product | Description | Use for light angles on the range of1 | Efficiency in Typical LED Luminaire2 |
| S-SC06 | Narrow (6°) softening / diffusing lens similar to Solite™ glass | 5º to > 30º | 90 - 96% |
| S-SH12 | Narrow (12°) softening / diffusing lens with Solite™-like texture | 10º to > 40º | 90 - 96% |
| Each product is available in the following materials and thicknesses: | ||
| Acrylic (PMMA) | 1.5, 2, 3, 3.8 mm | 0.060, 0.080, 0.120, 0.150 in |
| Polycarbonate | 0.25, 0.5, 0.75, 1.5, 2, 3 mm | 0.010, 0.020, 0.030, 0.060, .080, 0.120 in |
| PET | 0.075, 0.125 (UV), 0.175 mm | 0.003, 0.005 (UV), 0.007 in |
Solite™ and Industrex™ are trademarks owned by AGC Flat Glass North America, Inc.
Usage Notes
S-Series lenses can be used with the textured surface facing either in or out.
1Angles data are typical; they vary greatly depending on luminaire design.
2Efficiencies are typical; they vary greatly depending on luminaire design. BrightView tests include: commercial 4-inch LED downlight module, linear LED fluorescent tube-replacement, 2’x2’ LED troffer with clear acrylic cover.
