Elliptical LED Diffusers
E-Series Asymmetric Diffusers

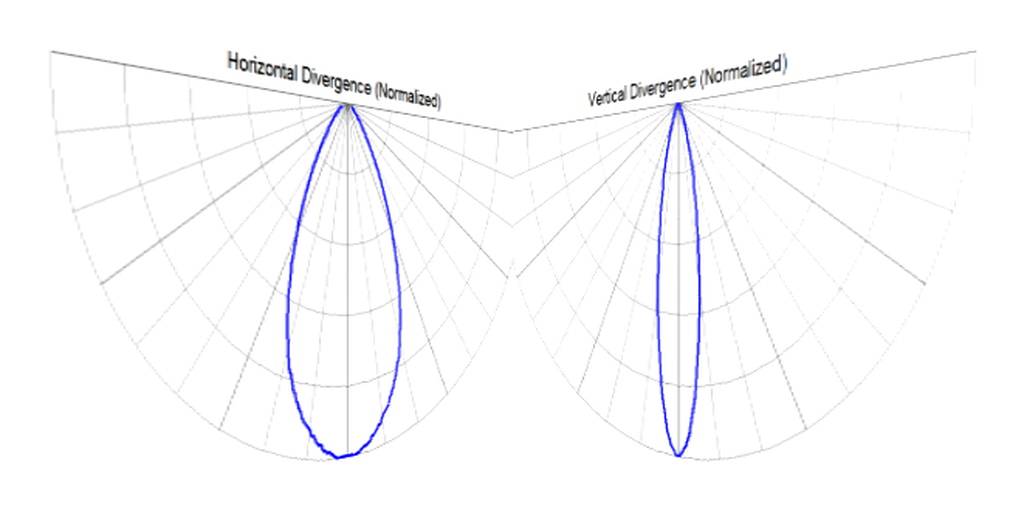

E-Series elliptical diffusers spread asymmetrically – more strongly in one direction than the other. They are used to diffuse a line of LEDs into a smooth line or to blend adjacent fluorescent lamps. They are also used to provide optimum spreading in wall-wash, linear, and cove applications. Because diffusion is only applied along one direction, efficiency can be even higher than C-Series diffusers. BrightView’s unique design causes less scalloping than other approaches, giving a smoother visual result.
| Product | Symbol | Diffuser Strength (higher numbers are more diffusive) | Efficiency in typical LED luminaire1 | Comments |
| E-0110 |  | 0.3 x 10 | 92 - 96% | Mixes lines of LEDs, and homogenizes fluorescent lamps. Also excellent for wall wash, cove, specialty |
| E-0115 |  | 0.3 x 15 | 91 - 95% | |
| E-0190 |  | 1 x 90 | 92 - 96% | |
| E-0140 E-4001 |  | 0.3 x 40 | 91 - 96% | |
| E-0160 E-6001 |  | 0.3 x 60 | 90 - 96% | |
| E-7001 |  | 0.1 x 70 | 90 - 96% | |
| E-1020 |  | 10 x 20 | 91 - 95% | |
| E-1040 |  | 10 x 40 | 91 - 95% | |
| E-1560 |  | 15 x 60 | 90 - 95% | |
| E-1324 |  | 13 x 24 | 91 - 95% | |
|  | 30 x 60 | 89 - 93% | |
| E-6010 E-1060 |  | 60 x 10 | 91 - 95% | |
Usage Notes:

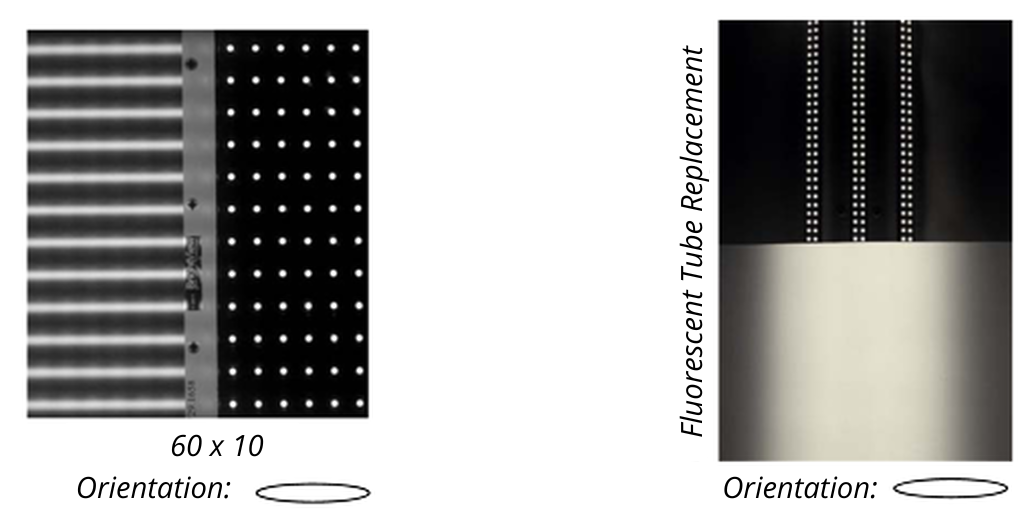

For lamp hiding as pictured above, E-Series diffusers are directional and are generally used with the microstructures facing away from the LEDs or lamps; please try both orientations. For light spreading in wall-wash and cove applications, E-Series diffusers are generally used with the microstructures facing toward the LEDs or lamps; please try both orientations. BrightView applications engineers can assist with product choices and help your design achieve peak performance
1Efficiencies are typical; they vary greatly depending on luminaire design. BrightView tests include: commercial 4-inch LED downlight module, linear LED fluorescent tube-replacement, 2’x2’ LED troffer with clear acrylic cover.
